Advanced technology gives you precise weighings and convenience
• High 1/30,000 weighing resolution
• AERO SPACE design
• Parts counting of light weight components
• Percentage calulation
• Density measurement
• Weight conversion of 8 units

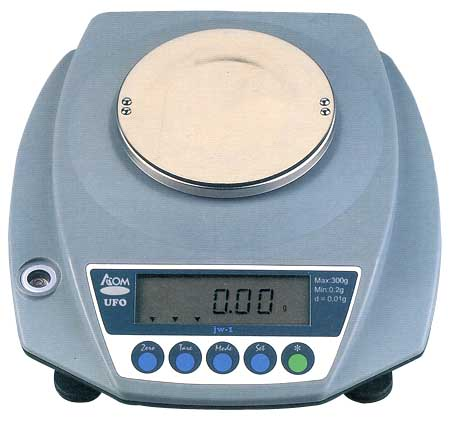

.gif "Balance Scales JW-1 plus")
• 1/30,000 Wider Weighing Range
Extended weighing range supports ease and convenience on applications such as jewellery shops, laboratories, textile factories, paint manufactures etc.
• Parts Counting
JW reports precise parts counting numbers with sensitivity detectable very light weight differ with conventional counting scales
• Battery Operation
When power off or outdoor using, you can keep weighings by battery power
• Percentage
With a sample weight as 100%, weights of other parts or objects are compared by percentage, this feature reports easy comparisons among the parts or object etc.
• Last Memories
When power has gone or switched off and on, JW goes into previous using mode automatically and setting data of counting, percentage also invoked
• RS-232C Interface
JW transfers data of weighing, counting and percentage to the personal computer
200gr x 0.01gr (Resolution : 1/20,000)
2kg x 0.1gr (Resolution : 1/20,000)
300gr x 0.01gr (Resolution : 1/30,000)
3kg x 0.1gr (Resolution : 1/30,000)
Specifications
| Model | JW-1 |
| Maximum Capacity | 200g | 300g | 2,000g | 3,000g |
| Minimum Graduation | 0.01g | 0.01g | 0.1g | 0.1g |
| Maximum Tare | -200g | -300g | -2,000g | -3,000g |
| A/D Conversion Speed | 3 Times / Second |
| Display | Liquid Crystal Display 6 digits |
| Auxiliary Displays | Zero, Stable, Tare, Batt |
| Weighing Pan Size | 123 mmØ | 180 mmØ |
| Product Size | (W) 280mm / 11" x (D) 250mm / 9.8" x (H) 65mm / 2.6" |
| Power Source | Power Adapter DC 9V / 300mA or Dry Cell 1.5V x 6EA |

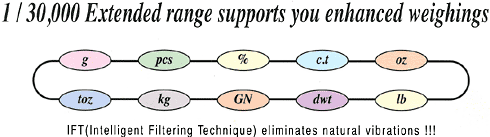

| Modes | g, pcs, %, c.t, oz, lb, dwt, GN, kg, toz |
| Counting |
|
| Minimum Unit Weight | 0.01g | 0.1g |
| Maximum Quantity | 20,000 | 30,000 | 20,000 | 30,000 |
| Sampling | 10, 20, 50, 100 pcs |
| Percentage |
|
| Minimum percent | 0.1% |
| Maximum Percent | 20000.0% | 30000.0% | 20000.0% | 30000.0% |
Options
1. Battery operation
2. RS-232 Interface
3. Density measurement
4. Custom formula applications
